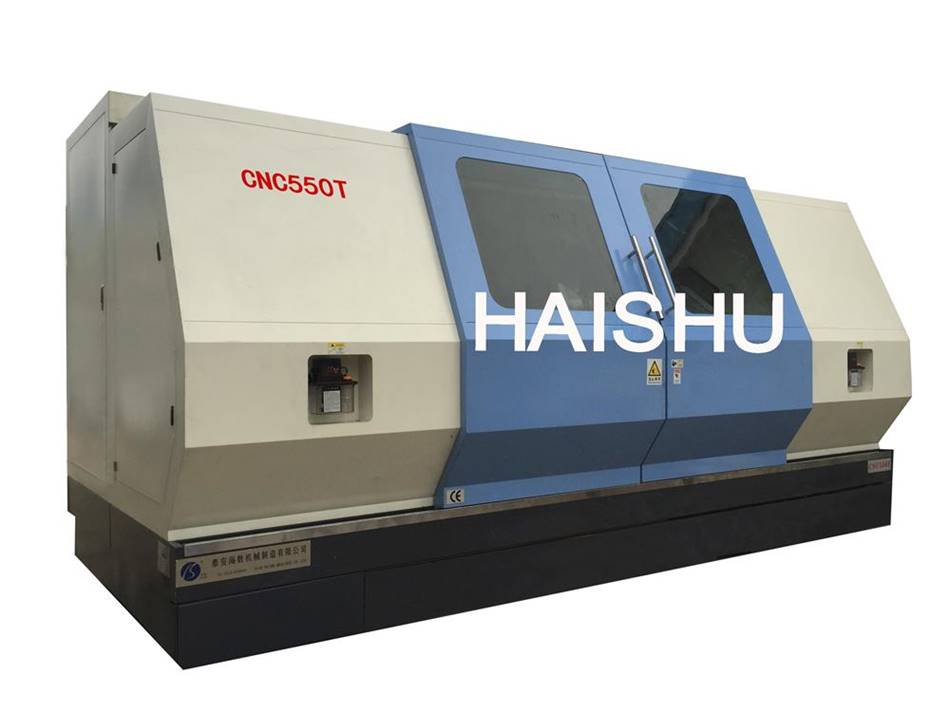

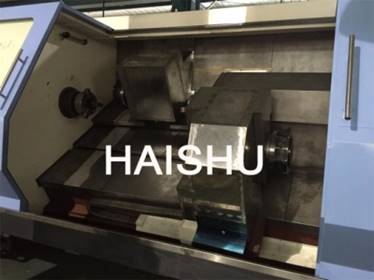

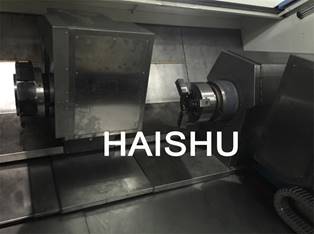

CNC550T/CNC850T CNC turning center
(Two spindle, Two power turret, Two Y axis)
|
Item |
Unit |
Technical Parametersl | ||
|
CNC550T |
CNC850T | |||
|
Maximum turning diameter over bed |
mm |
550 |
850 | |
|
Maximum turning diameter pallet |
mm |
500 |
800 | |
|
Maximum machining length |
mm |
350 | ||
|
Processing metric thread range |
mm |
0.25~8 | ||
|
Anglo-American system processing thread range |
Teeth / inch |
3~80 | ||
|
Spindle bore diameter |
mm |
80 | ||
|
Rod hole diameter |
mm |
65 | ||
|
Spindle speed |
Servo |
r/min |
6000 | |
|
Frequency conversion |
r/min |
300~2800 | ||
|
X-axis travel |
mm |
300 | ||
|
Z-axis travel |
mm |
550 | ||
|
X-axis maximum mobile speed |
Servo |
mm/min |
25,000 | |
|
Z-axis maximum mobile speed |
Servo |
mm/min |
25,000 | |
|
Vice spindle travel |
mm |
1000 | ||
|
Vice spindle power |
KW |
11/15 | ||
|
Maximum stroke tailstock sleeve |
mm |
90 | ||
|
Main motor power |
Servo |
KW |
11/15 | |
|
Frequency conversion |
KW |
15 or 18 | ||
|
Lubricating oil pump power |
W |
40 | ||
|
Hydraulic pump power |
KW |
5.5 | ||
|
Cooling water pump power |
W |
120 | ||
|
Workpiece clamping power source |
hydraulic | |||
|
Turret |
12-Station power-turret | |||
|
Y-axis travel |
mm |
±55 | ||
|
Dimensions（LXWXH） |
mm |
5700x3566x2890 | ||
|
Net weight |
kg |
22000 | ||
